Energizer 2000XT-H Hybrid Headlamp

Voir les directives en français canadien

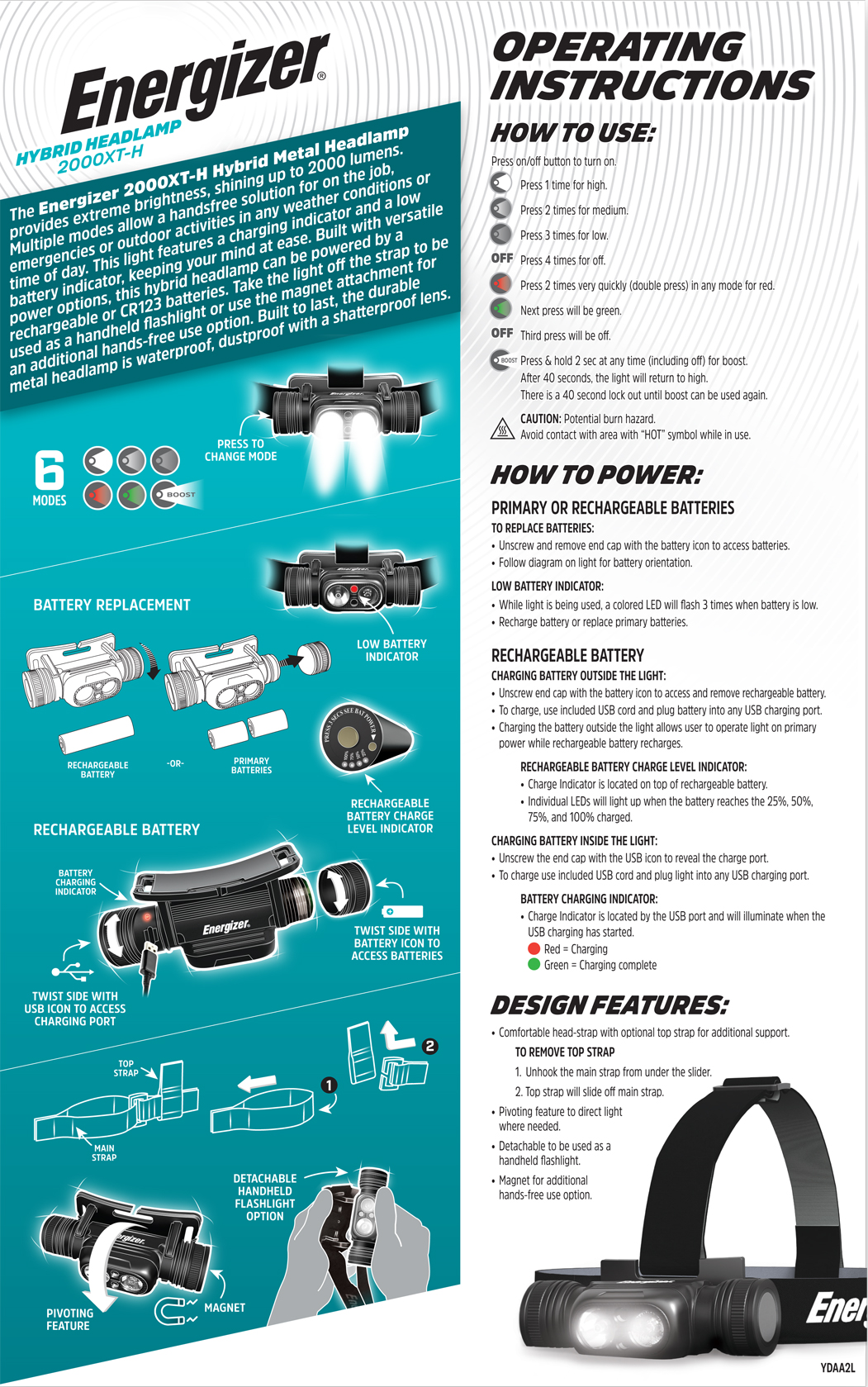

HOW TO USE:

6 MODES (PRESS TO CHANGE MODE) :
Press on/off button to turn on

Press 1 time for High.
Press 2 times for Medium.
Press 3 times for Low.
Press 4 times for Off.
Press 2 times very quickly (Double press) in any mode for red.
Next press will be green.
Third press will be off.
Press & Hold 2 sec at any time(including off) for Boost.
After 40 seconds, the light will return to High.
There is a 40 second lock out until Boost can be used again.

CAUTION: Potential burn hazard.
Avoid contact with area with “HOT” symbol while in use.

HOW TO POWER:

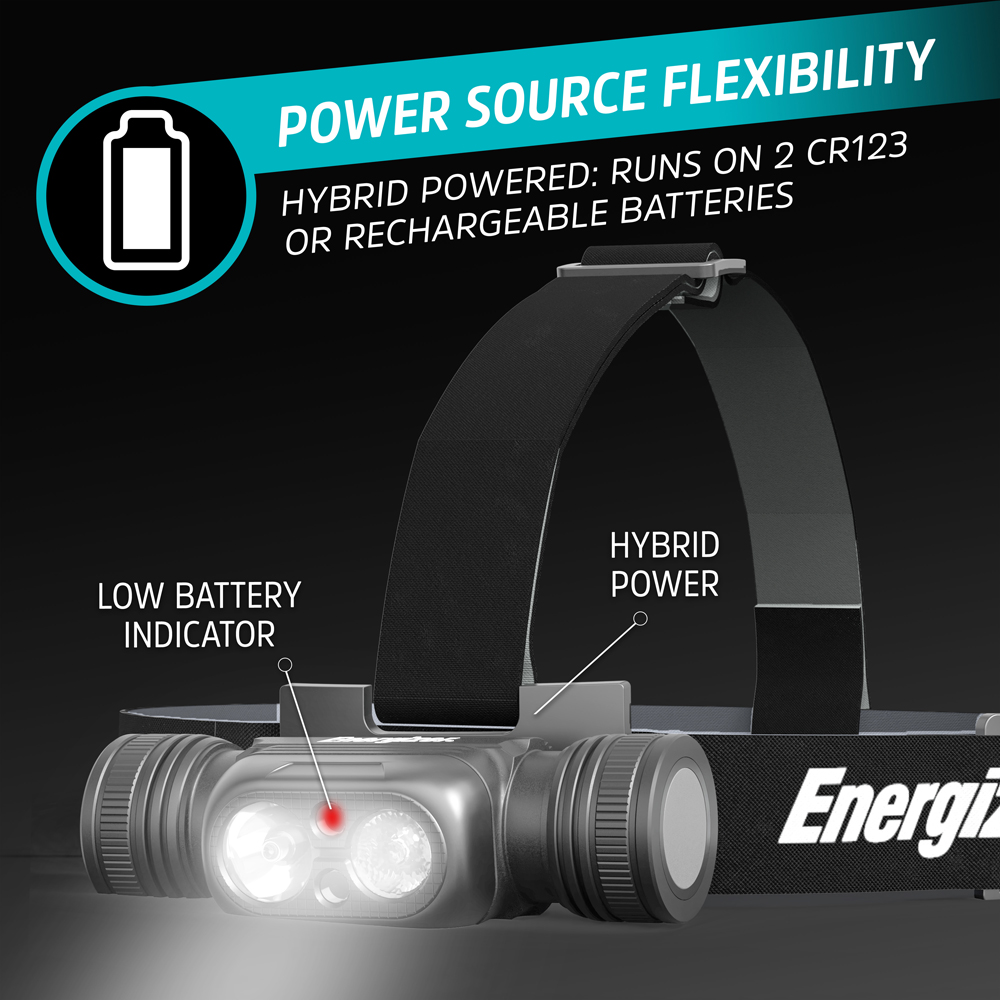

PRIMARY OR RECHARGEABLE BATTERIES

TO REPLACE BATTERIES:
• Unscrew end cap with the battery icon to access batteries.
• Follow diagram on light body for battery orientation.

LOW BATTERY INDICATOR:
• While light is being used, a colored LED will flash 3 times when battery is low.
• Recharge battery or replace primary batteries.

CHARGING BATTERY OUTSIDE THE LIGHT:
• Unscrew end cap with the battery icon to access and remove rechargeable battery.
• To charge, use included USB cord and plug battery into any USB charging port.
• Charging the battery outside of the light allows user to operate light on primary power while rechargeable battery recharges.

RECHARGEABLE BATTERY CHARGE LEVEL INDICATOR:
• Charge Indicator is located on top of rechargeable battery.
• Individual LEDs will light up when the battery reaches the 25%, 50%, 75%, and 100% charged.

CHARGING BATTERY INSIDE THE LIGHT:
• Unscrew the end cap with the USB icon to reveal the charge port.
To charge use included USB cord and plug light into any USB charging port.

BATTERY CHARGING INDICATOR:
• Charge indicator is located by the USB port and will illuminate when the USB charging has started.
Red = Charging
Green = Charging complete

BATTERY PLACEMENT:

RECHARGEABLE BATTERY
PRIMARY BATTERIES
• Twist side with USB Icon to access charging port.
• Twist side with battery icon to access batteries.

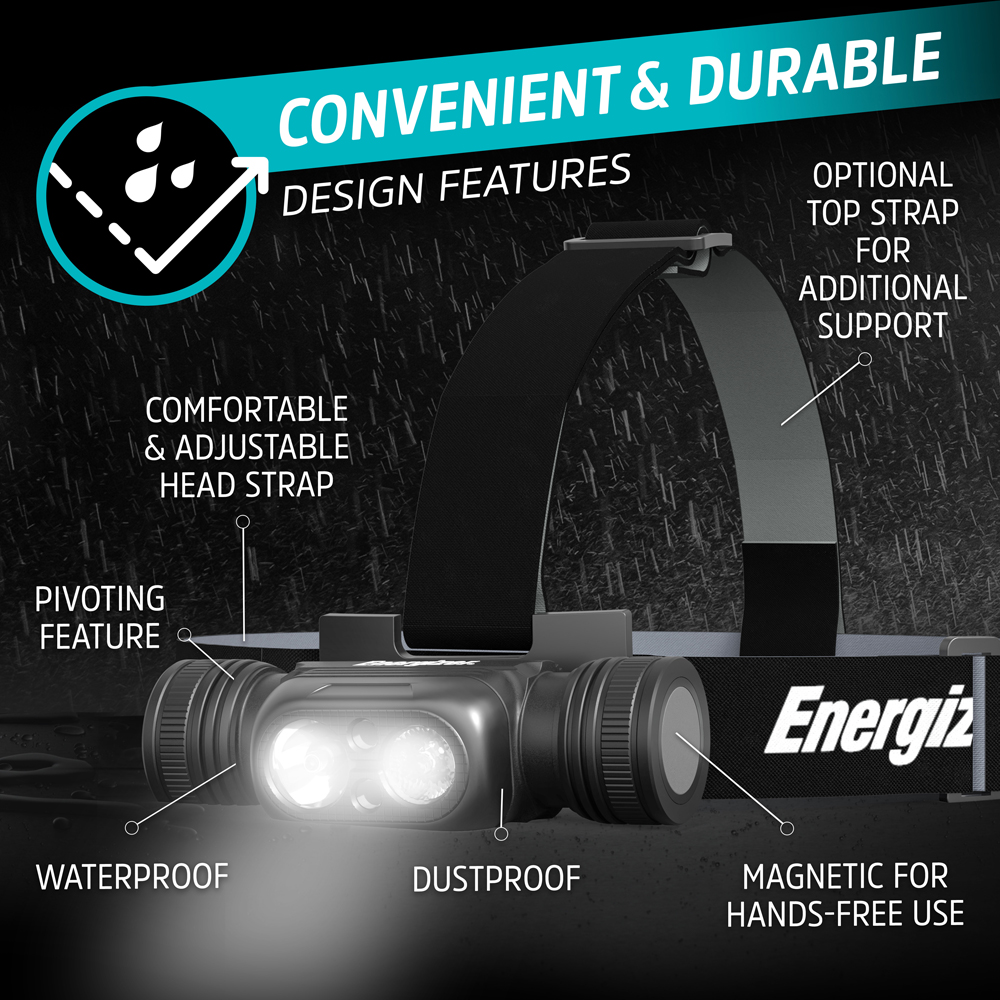

DESIGN FEATURES:

• Comfortable head-strap with optional top strap for additional support.

TOP STRAP

TO REMOVE TOP STRAP
1. Unhook the main strap from under the slider.
2. Top strap will slide off main strap.

• Pivoting feature to direct light where needed.

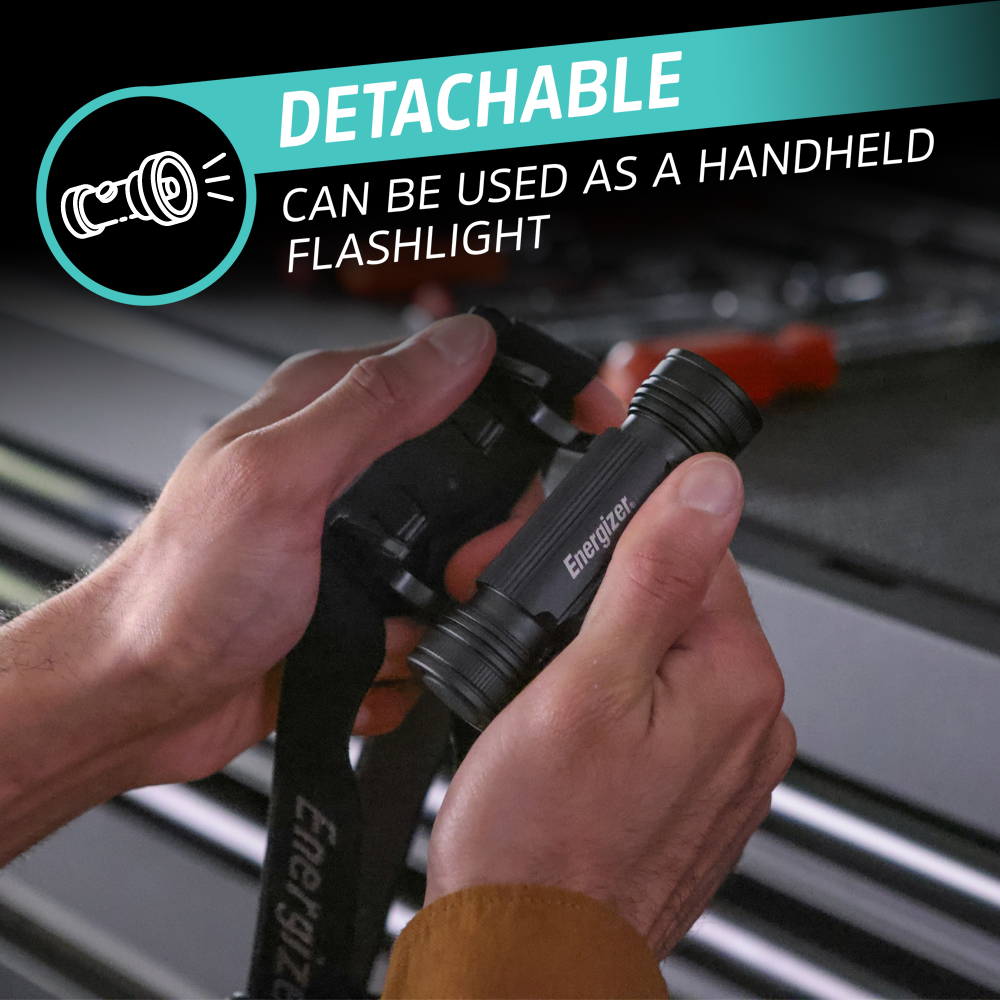

• Detachable to be used as a handheld flashlight.
• Magnet for additional hands-free use option.
