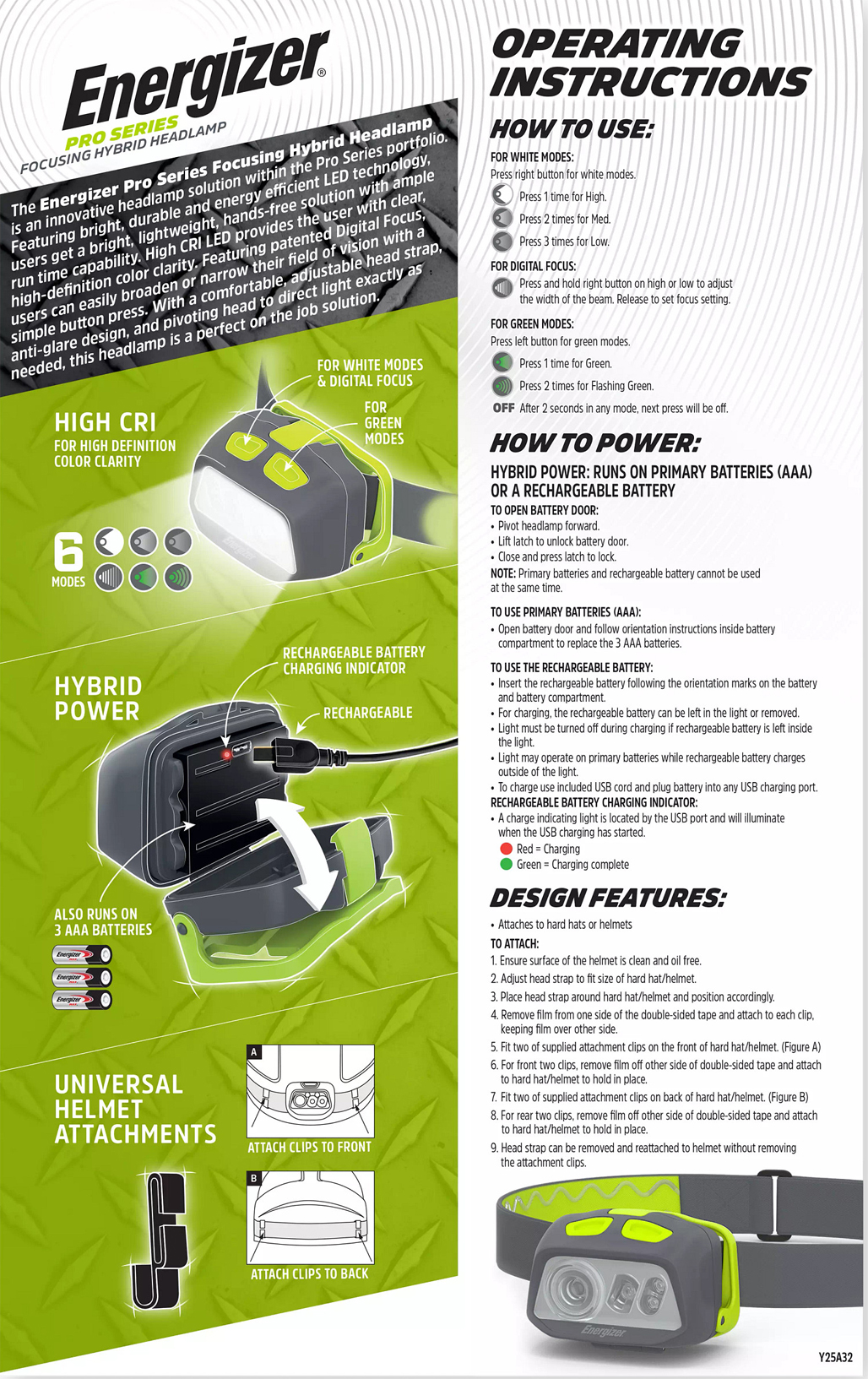

HOW TO USE:

For White Modes:

press right button for white modes
press 1 time for high
press 2 times for medium
press 3 times for low

FOR DIGITAL FOCUS

press and hold right button on high or low to adjust the width of the beam. Release to set focus setting.

PRESS LEFT BUTTON FOR GREEN MODES

press 1 time for green
press 2 times for flashing green
After 2 seconds in any mode, next press will be off

HOW TO POWER:

HYBRID POWER: RUNS ON PRIMARY BATTERIES (AAA) OR A RECHARGEABLE BATTERY

Also runs on 4 AAA Batteries

TO OPEN BATTERY DOOR

Pivot headlamp forward
Lift latch to unlock battery door. ​
Close and press latch to lock.
Note: Primary batteries and rechargeable battery cannot be used at the same time

TO USE PRIMARY BATTERIES (AAA)

open battery door and follow orientation instructions inside battery compartment to replace 3AAA batteries

TO USE THE RECHARGEABLE BATTERY

Insert the rechargeable battery following the orientation marks on the battery and battery compartment.
For charging, the rechargeable battery can be left in the light or removed.
Light must be turned off during charging if rechargeable battery is left inside the light.
Light may operate on primary batteries while rechargeable battery charges outside of the light
To charge use included USB cord and plug battery into any USB charging port.
Rechargeable battery change indicator
a charge indicating light is located by the USB port and will illuminate when USB charging has started
red = charging
green = charging complete

DESIGN FEATURES:

•Attaches to hard hats or helmets

TO ATTACH:

1. Ensure surface of the helmet is clean and oil free.
2. Adjust head strap to fit size of hard hat/helmet.
3. Place head strap around hard hat/helmet and position accordingly.
4. Remove film from one side of the double-sided tape and attach to each clip. keeping film over other side.
5. Fit two of supplied attachment clips on the front of hard hat/helmet.(Figure А)
6. For front two clips, remove film off other side of double-sided tape and attach to hard hat/helmet to hold in place.
7. Fit two of supplied attachment clips on back of hard hat/helmet. (Fiqure B)
8. For rear two clips, remove film off other side of double-sided tape and attach to hard hat/helmet to hold in place.
9. Head strap can be removed and reattached to helmet without removing the attachment clips.
