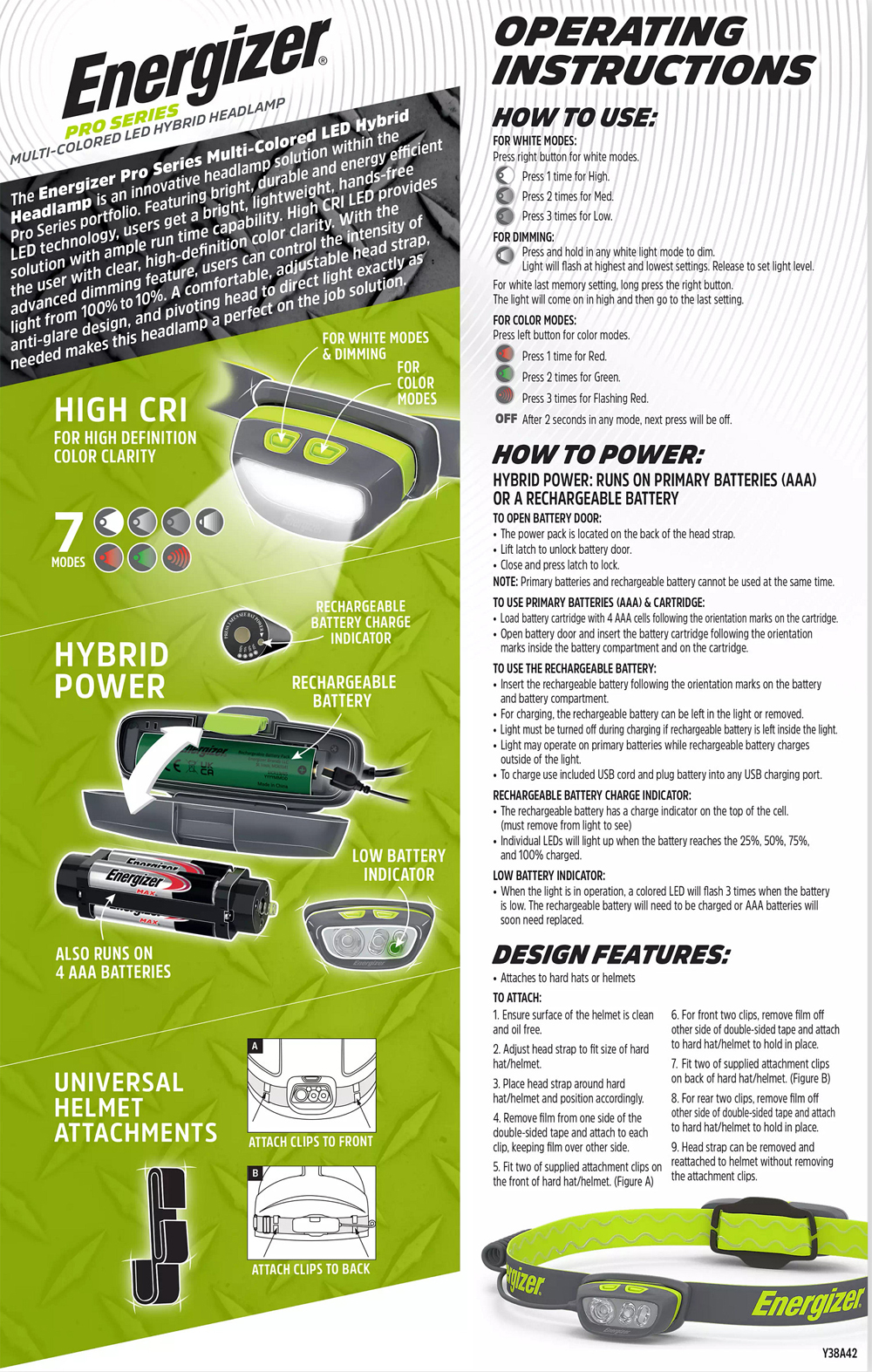

HOW TO USE:

7 MODES:

High, Med, Low, Dimming, Red, Green, Flashing Red

FOR WHITE MODES:

Press right button for white modes
Press 1 time for high
Press 2 times for medium
Press 3 times for low

FOR DIMMING

Press and hold in any white light mode to dim.
Light will flash at highest and lowest settings. Release to set light level.
For white last memory setting, long press the right button.
The light will come on in high and then go to the last setting

FOR COLOR MODES

Press left button for color modes
Press 1 time for red
Press 2 times for green
Press 3 times for flashing red
After 2 seconds in any mode, next press will be off.

HOW TO POWER:

HYBRID POWER: RUNS ON PRIMARY BATTERIES (AAA) OR A RECHARGEABLE BATTERY

TO OPEN BATTERY DOOR

The power pack is located on the back of the headstrap
Lift latch to unlock battery door. ​
Close and press latch to lock.
Note: Primary batteries and rechargeable battery cannot be used at the same time.

TO USE PRIMARY BATTERIES (AAA) & CARTRIDGE

Load battery cartridge with 4 AAA cells following the orientation marks on the cartridge.
Open battery door and insert the battery cartridge following the orientation marks inside the battery compartment and on the cartridge.

TO USE THE RECHARGEABLE BATTERY

Insert the rechargeable battery following the orientation marks on the battery and battery compartment.
For charging, the rechargeable battery can be left in the light or removed.
Light must be turned off during charging if rechargeable battery is left inside the light.
Light may operate on primary batteries while rechargeable battery charges outside of the light
To charge use included USB cord and plug battery into any USB charging port.

RECHARGEABLE BATTERY CHARGE INDICATOR

The rechargeable battery has a charge indicator on the top of the cell. (must remove from light to see)
Individual LEDs will light up when the battery reaches the 25%, 50%, 75%, and 100% charged.

LOW BATTERY INDICATOR

When the light is in operation, a coloured LED will flash 3 times when the battery is low. The rechargeable battery will need to be charged or AAA batteries will soon need replaced

DESIGN FEATURES:

UNIVERSAL HELMET ATTACHMENTS

Attaches to hard hats or helmets

TO ATTACH:

1. Ensure surface of the helmet is clean and oil free.
2. Adjust head strap to fit size of hard hat/helmet.
3. Place head strap around hard hat/helmet and position accordingly.
4. Remove film from one side of the double-sided tape and attach to each clip. keeping film over other side.
5. Fit two of supplied attachment clips on the front of hard hat/helmet.(Figure А)
6. For front two clips, remove film off other side of double-sided tape and attach to hard hat/helmet to hold in place.
7. Fit two of supplied attachment clips on back of hard hat/helmet. (Fiqure B)
8. For rear two clips, remove film off other side of double-sided tape and attach to hard hat/helmet to hold in place.
9. Head strap can be removed and reattached to helmet without removing the attachment clips.
